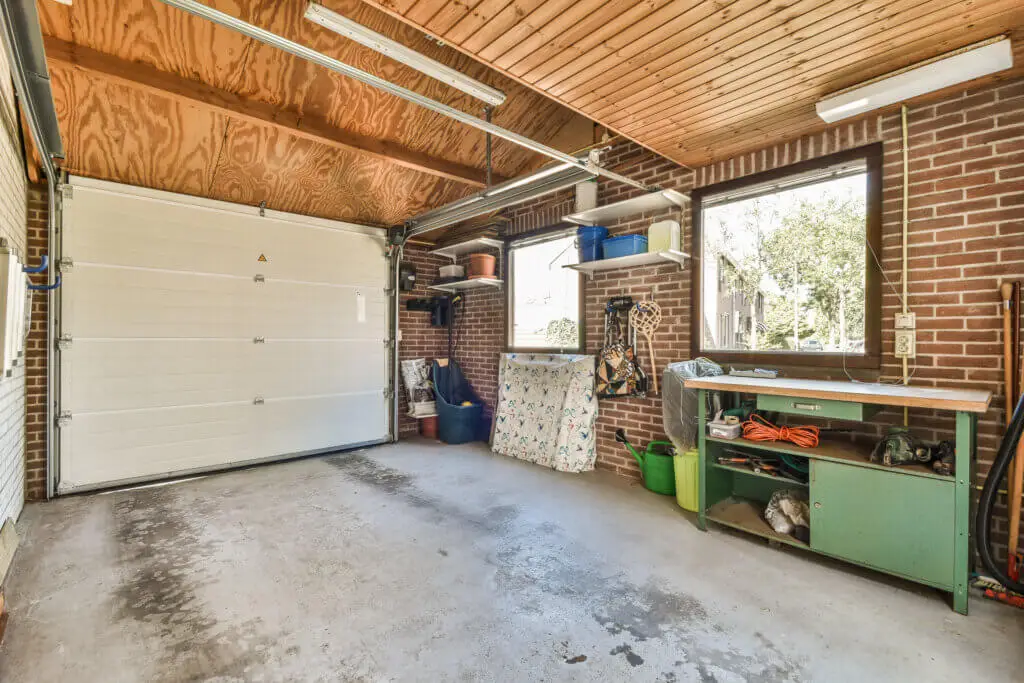

For many homeowners, the garage is the largest uninsulated space in the house. A major source of heat loss in the winter and heat gain in the summer is the garage door itself. Insulating the door with foam board is a practical, cost-effective, and straightforward DIY project that significantly improves the garage’s energy efficiency and comfort.
Greater Boston Contractors supports homeowners taking on projects that improve their home’s performance. Here is a step-by-step guide to insulating your garage door using rigid foam board.
Quick Answer: Does Foam Board Help?
Yes, absolutely. Insulating a garage door with rigid foam board is one of the most effective and affordable ways to stabilize the garage environment, especially when compared to insulating walls or ceilings.
Comfort, Noise Reduction, and More Stable Garage Temps
- Thermal Barrier: Foam board adds a layer of thermal resistance (R-value) that slows the transfer of heat. This means the garage stays warmer in winter and cooler in summer.
- Energy Savings: If the garage is attached to the house, insulating the door reduces heat transfer through the shared wall, lowering your home’s utility bills.
- Noise Reduction: The dense foam absorbs sound, reducing exterior noise pollution and dampening the sound of the garage door opener.
When Insulation Won’t Fix the Problem (Air Leaks, Uninsulated Walls)
Door insulation works best as part of a system. If your garage is cold due to drafts, the door insulation alone won’t solve it.
- Air Leaks: The biggest source of energy loss is often the gaps around the door. Weatherstripping must be replaced or installed around the perimeter before insulating the panels.
- Uninsulated Structure: If the ceiling and walls are completely uninsulated, heat will still transfer quickly through those surfaces, limiting the overall impact of the door insulation.
Choosing Foam Board (Types & R-Value Basics)
Selecting the right foam board material ensures maximum performance and durability for this application.
Polystyrene vs. Polyurethane Options (What’s Common for DIY)
The two most common types of foam board used for garage doors are:
- Expanded Polystyrene (EPS): The white, beaded foam. It’s the most affordable and lightweight option. It offers an R-value of roughly R-3.8 to R-4.0 per inch of thickness.
- Extruded Polystyrene (XPS): The colored foam (usually pink or blue) with a smooth plastic film on the surface. It is denser and offers a slightly higher R-value (around R-5.0 per inch) and better moisture resistance than EPS.
For most garage door applications, XPS foam board is the best blend of performance and cost.
Matching Thickness to Door Panel Cavities
- Fit is Key: You must measure the depth of the inner cavity of your garage door panels. The foam board should be cut to fit snugly without pressing against the outer skin of the door, as this can affect the door’s balance and operation.
- R-Value Maximization: Choose the thickest foam board that fits within the available cavity depth. For example, if your panels are 1.5 inches deep, use 1.5-inch thick foam.
Step-by-Step: How to Install Foam Board on a Garage Door
This process is straightforward but requires precise measurement and attention to detail.
1. Measure Panels, 2. Cut Foam, 3. Fit/Adhere, 4. Tape Seams
- Measure and Mark: Carefully measure the length and width of each individual recessed panel on your garage door. Subtract about 1/8 inch from both dimensions to allow for slight expansion and easier fitting.
- Cut Foam: Use a utility knife and a straight edge to cut the foam board to size. Ensure cuts are clean and straight for a tight fit.
- Fit and Adhere: Insert the foam pieces into the panel cavities. For additional stability, apply a small amount of construction adhesive (ensure it is foam-board safe, as many adhesives dissolve foam) to the back of the panel before inserting the foam. A tight, friction fit is usually sufficient.
- Tape Seams: Use foil-backed tape (HVAC tape) or durable white duct tape to seal all edges where the foam meets the door frame and any seams between multiple pieces of foam. This prevents moisture intrusion and provides a cleaner, finished look.
Don’t Forget Weatherstripping and Edge Sealing
- Bottom Seal: Replace or install a new rubber or vinyl bottom seal to prevent drafts and moisture from entering beneath the door.
- Perimeter Seals: Install vinyl or rubber seals along the vertical and top edges of the door frame to seal gaps when the door is closed.
Safety & Performance Mistakes to Avoid
The operation of a garage door depends on perfect balance. Incorrect insulation can cause serious issues.
Adding Too Much Weight / Interfering with Hinges and Rollers
- Weight Check: While foam board is lightweight, adding any material affects the door’s balance. After installation, test the door’s spring system. If the door drifts down when stopped halfway up, the tension springs need adjustment. This is a job for a professional garage door technician, as the springs are under high tension and can be extremely dangerous to adjust without proper tools and experience.
- Clearance: Ensure the foam does not touch any hinges, rollers, cables, or tracks when the door opens and closes. Any interference will cause premature wear or dangerous malfunction.
Blocking Door Hardware Movement or Safety Sensors
Ensure the foam board does not impede any moving parts, specifically:
- The release handle for emergency manual operation.
- The track and roller mechanism.
- The photo-eye sensors at the base of the door opening (ensure no pieces of foam or tape hang down to block the sensor beam).
FAQs
Should I insulate the garage ceiling instead?
Ideally, you should do both, but the priority depends on your goal:
- For Thermal Stability (attached garage): Insulating the ceiling is crucial to prevent heat loss into the attic space.
- For Immediate Comfort (detached garage): Insulating the door provides the fastest, most noticeable temperature moderation within the workspace itself.
Will insulating the door reduce condensation?
Yes, it can significantly reduce condensation. Condensation occurs when warm, moist air meets a cold surface (like uninsulated metal panels). Adding insulation keeps the interior surface of the door warmer, reducing the temperature differential and thus minimizing the opportunity for moisture to condense.
Is a kit better than cutting foam board myself?
- Kits: Offer convenience and often include the necessary hardware (clips or adhesive) and pre-cut pieces designed for standard panel sizes. They are great for beginners.
- Cutting Foam Board: Provides superior thermal performance because you can cut the foam to the precise dimensions of your unique door panels, maximizing coverage and reducing air gaps. If you have non-standard panel sizes, cutting the foam board yourself is often the only way to achieve a perfect fit.
